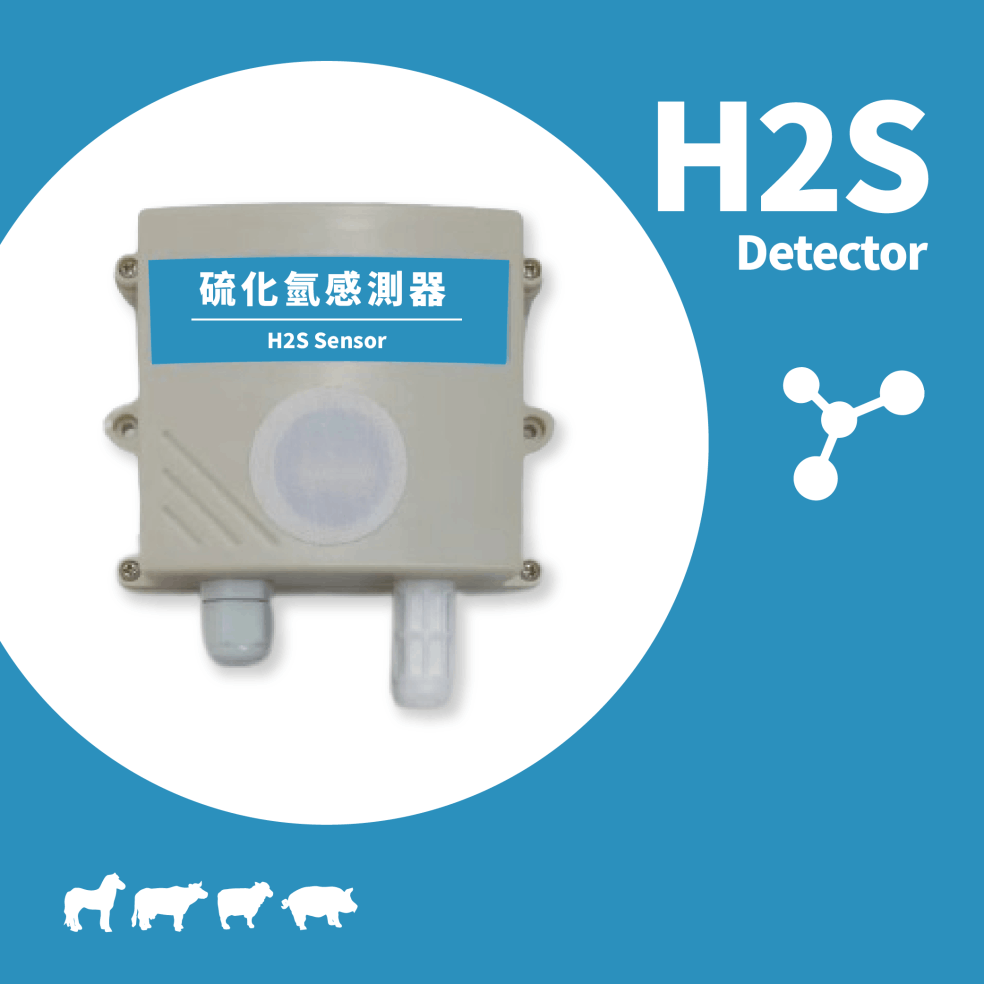

Fixed ‧ H2S Gas Detector

Long term & Continuous measurement
Measures in real time the concentration of Hydrogen Sulfide in ambient air.

What is H2S

gas detector ?

H2S gas detector uses a professional sensor - the H2S concentration sensor as the core detection component.

It has the characteristics of wide measuring rang, high precision, good linearity, good versatility, convenient operation and installation.

Smart Bridge Information's gas detection rang provides high-precision gas detection and measurement.

The H2S gas detector supports continuous sampling, measurement and detection of ambient gas quality and H2S concentration between 0 ~ 100 ppm.

It is then unified and controlled by the main control center-Gateway system, which allows users to browse and track the gas concentration status of the work area at any time, and can meet standards and safety when formulating gas environmental control targets to reduce the risk of serious harm to health.

How does a H2S gas detector work ?

How it work ?
Our H2S gas detector is used for H2S concentration measurement, and the device is used to measure one single gas concentration in an area at a single point in time.

How is a H2S gas detector operates ?
☑   RF Pairing:detector and gateway
☑  Choose an appropriate location to install

The data will be tested once every minute through the H2S gas detector, and the measurement result value (PPM) will be sent directly to the equipment main control center-Gateway through 2.4Ghz RF IoT transmission technology, and finally uploaded to the cloud center.

Supports users created personal accounts. Users can log in to the system remotely with their Account ID / Password, and enter the system interface center to browse, which can meet the user's remote monitoring needs at any time, to grasp real-time on-site data or track relevant historical data.

Applications

• Farm
• Greenhouse
• Environmental Control of Livestock Farms
• Soil Fertilizer Management
• Other Industry Applications

Features

• High-Precision
• Good Linearity
• Good Versatility
• Wide Measurement Range
• Quick Installation and Easy to use
• Strong and Resistant to corrosion
•  Measure a single type of gas at a time

Mobirise

Product Parameters / Specification

Does not cause system burden and maintains quality requirements

Accuracy

1

±2 ppm or ± 10%

Stability

2

≤ 2% of range / month

Response Time

3

≤ 35 seconds

Warm-up Time

4

≥ 5 minutes

Operating Temperature

5

-20 ~ +50℃

Humidity

6

15 ~ 90% RH  (non condensing)

Resolution

7

1 ppm

Repeatability

8

≤ 2%

Measuring Rang

9

0 ~ 100 ppm

Power Consumption

10

0.12 W

Service Life (months)

11

24 months
